Reverberation
Reverb
With smart ideas and innovating design we made Reverberation, a must have reverb pedal that It is very easy to control and it can please any demand on stage or in the studio.
Set the decay in the preferable position and experience the ambient like never before! The range of decay is so wide that can please any taste or need and it can go from really small room reverb to even large halls, cathedral or even stadium ambient environment.
Damp knob controls the damp frequency of the reverb, clockwise ads more chromatic reflections to the ambient space almost like new dimension expanding your tone in other levels.
Maximize pushes the overall signal without any distortion like the classic retro, sweet reverb amps that can leave anyone surprised and pleased from its lovely tones. Maximize makes the overall think more profound, making you able to create more define reverb tones in all the range of Decay settings. When everything seems to be sloppy, loose and unclear Maximize is the solution that beats everything.
Reverberation seems to have no limits, even in extreme gain or fully clockwise setting maintains its musicality and letting you honestly express yourself!
Demo Video & Audio Samples
In The Loop
Instead of using the traditional signal chain and connect all the pedals in the front of the amp, you can connect modulation and time effects using the amplifiers FX Loop.
An effects loop allows you to place pedals after the pre-amp stage.
In that way you don’t feed the pre-amp section of the amplifier with modulation and time effects.

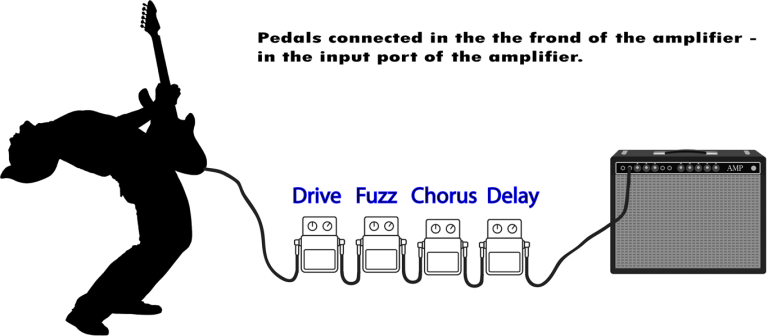

Because there is no right or wrong, you can always connect your pedals the traditional way.
Maybe you like it better this way or this result suite better a particular amplifier.

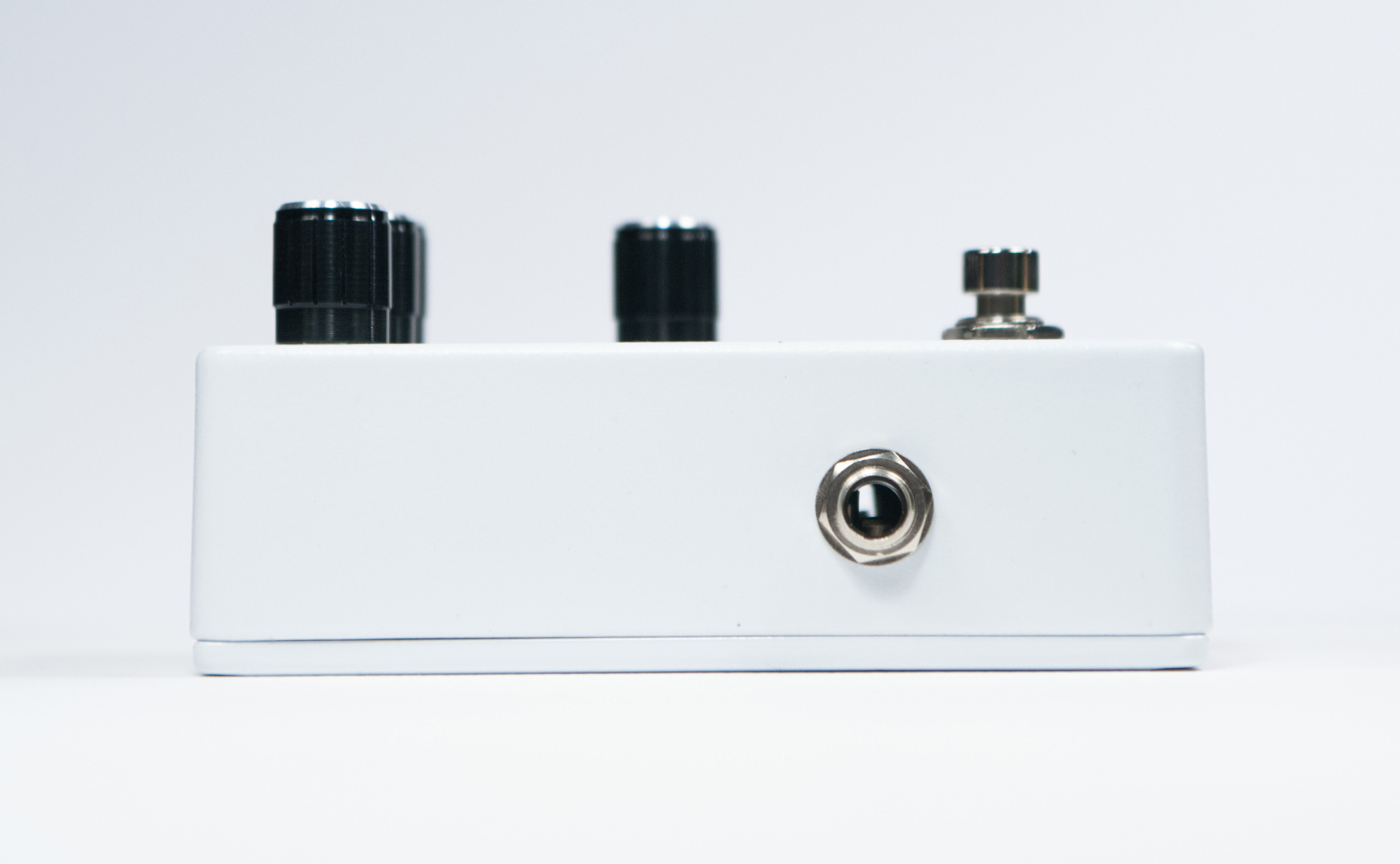

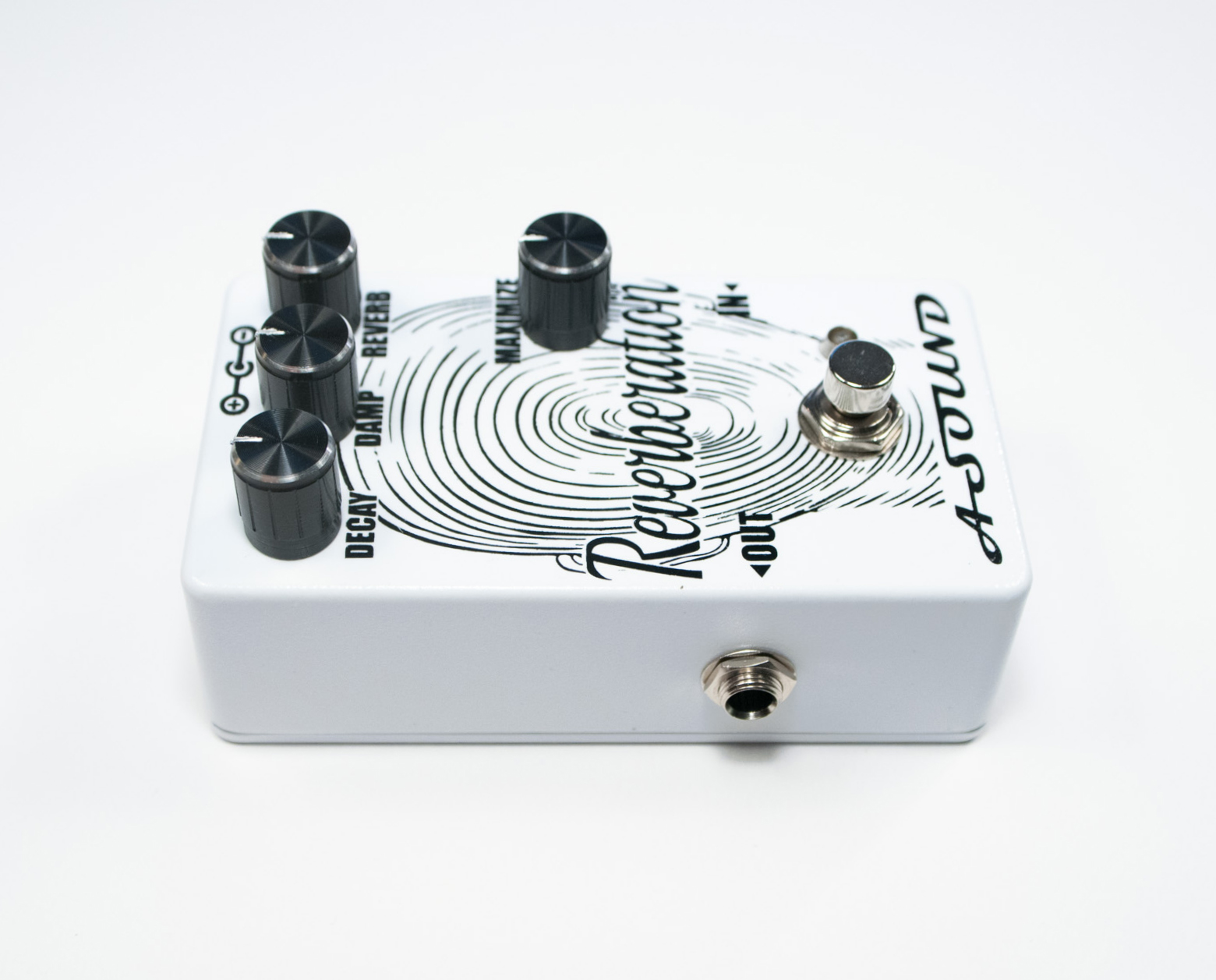

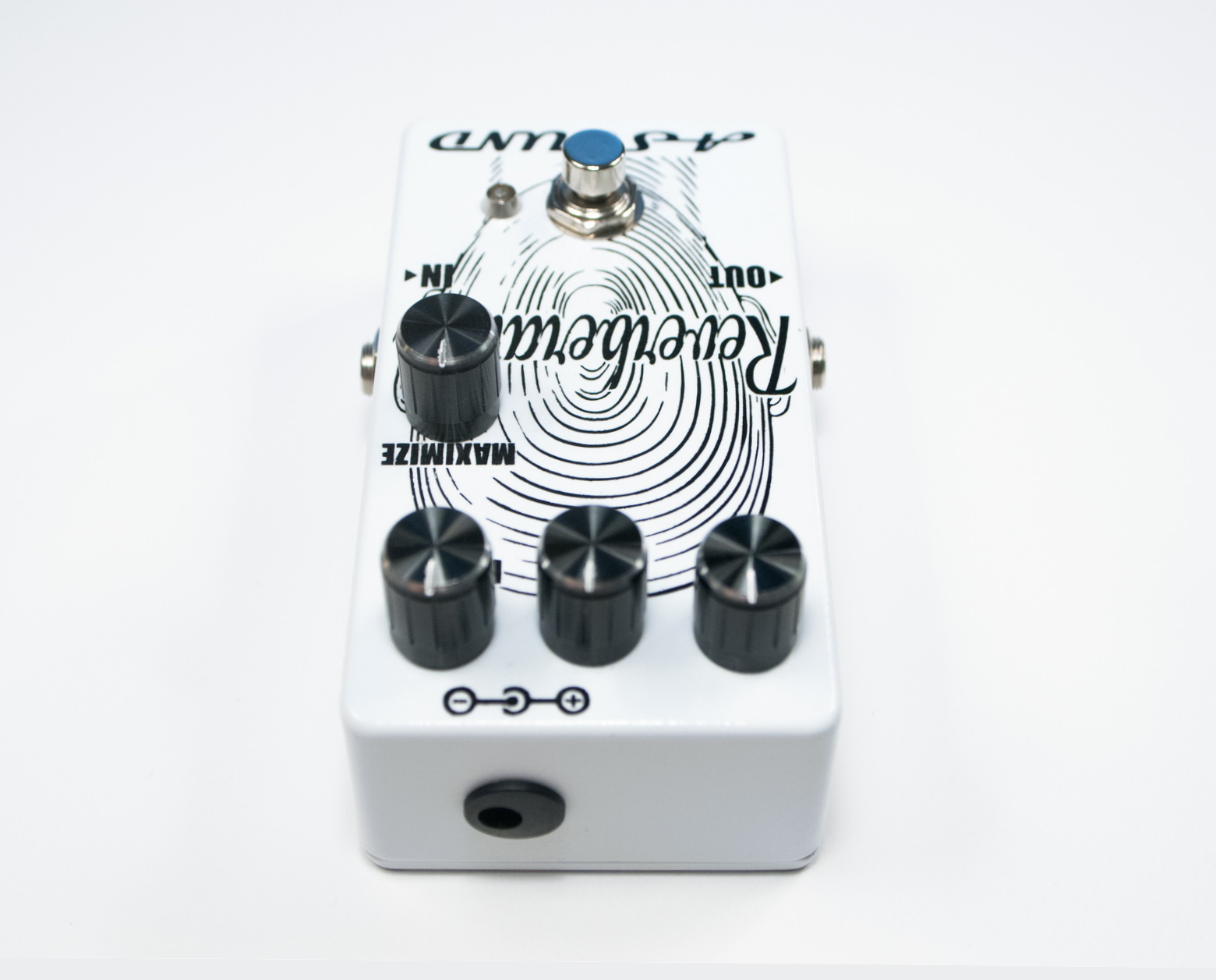

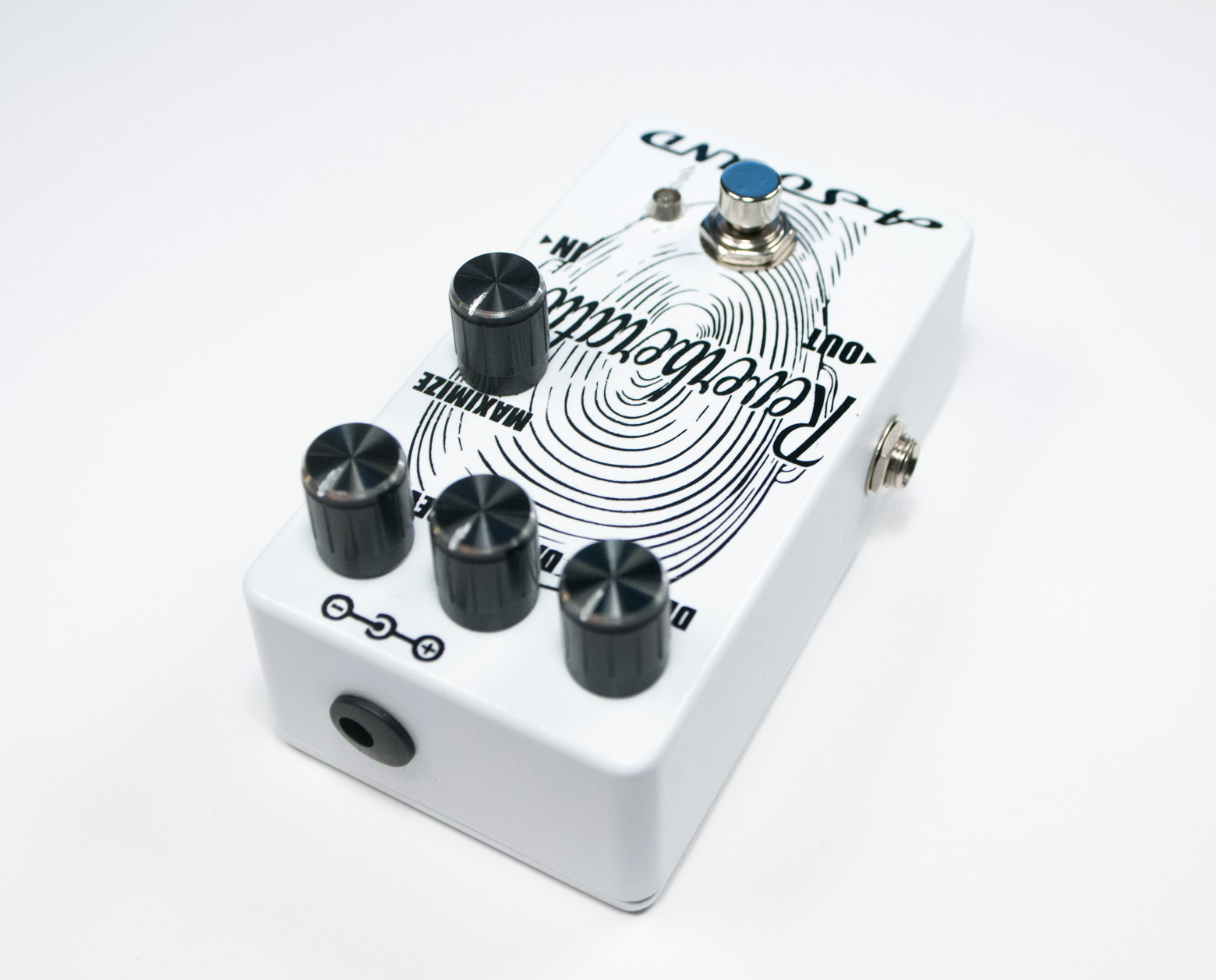

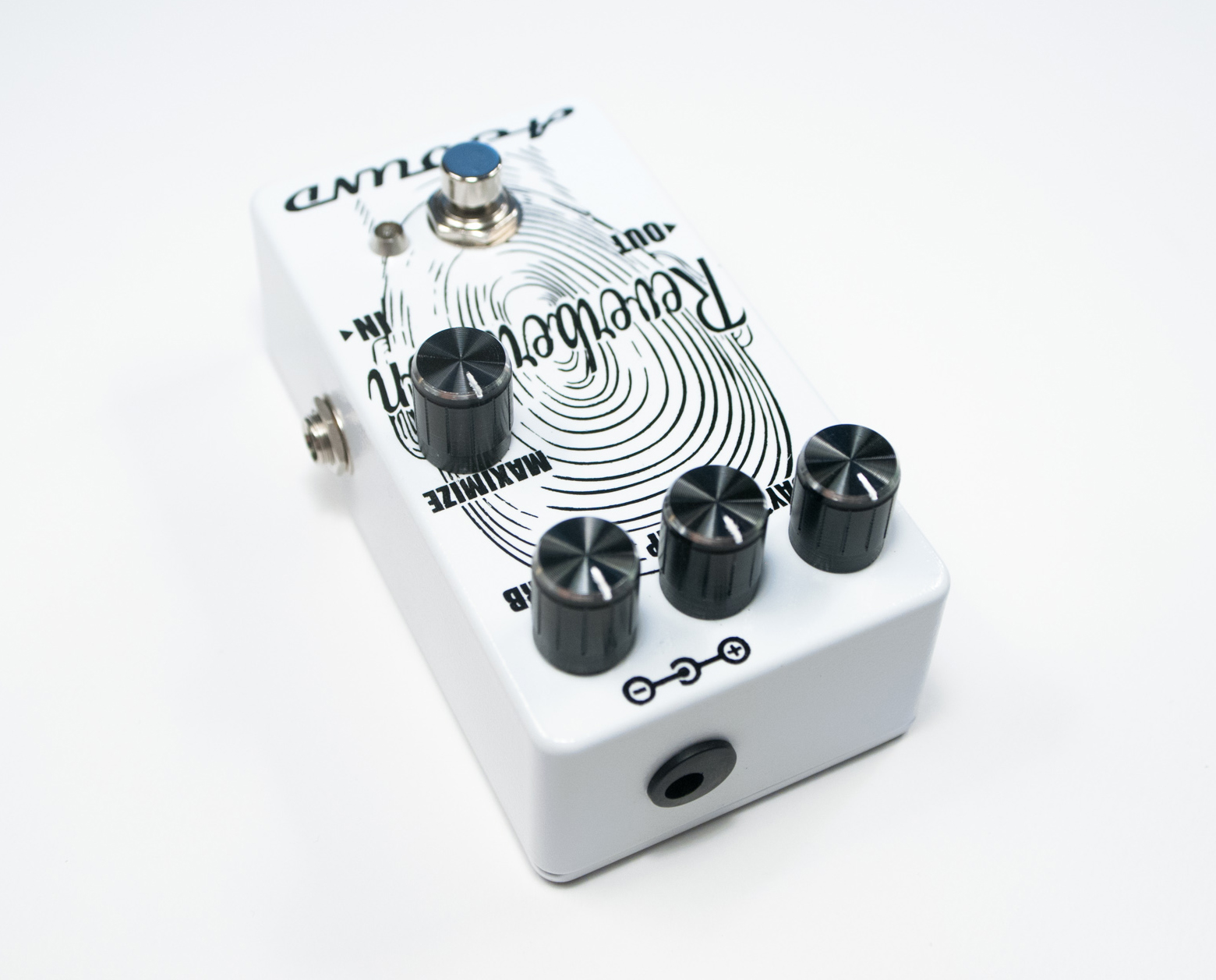

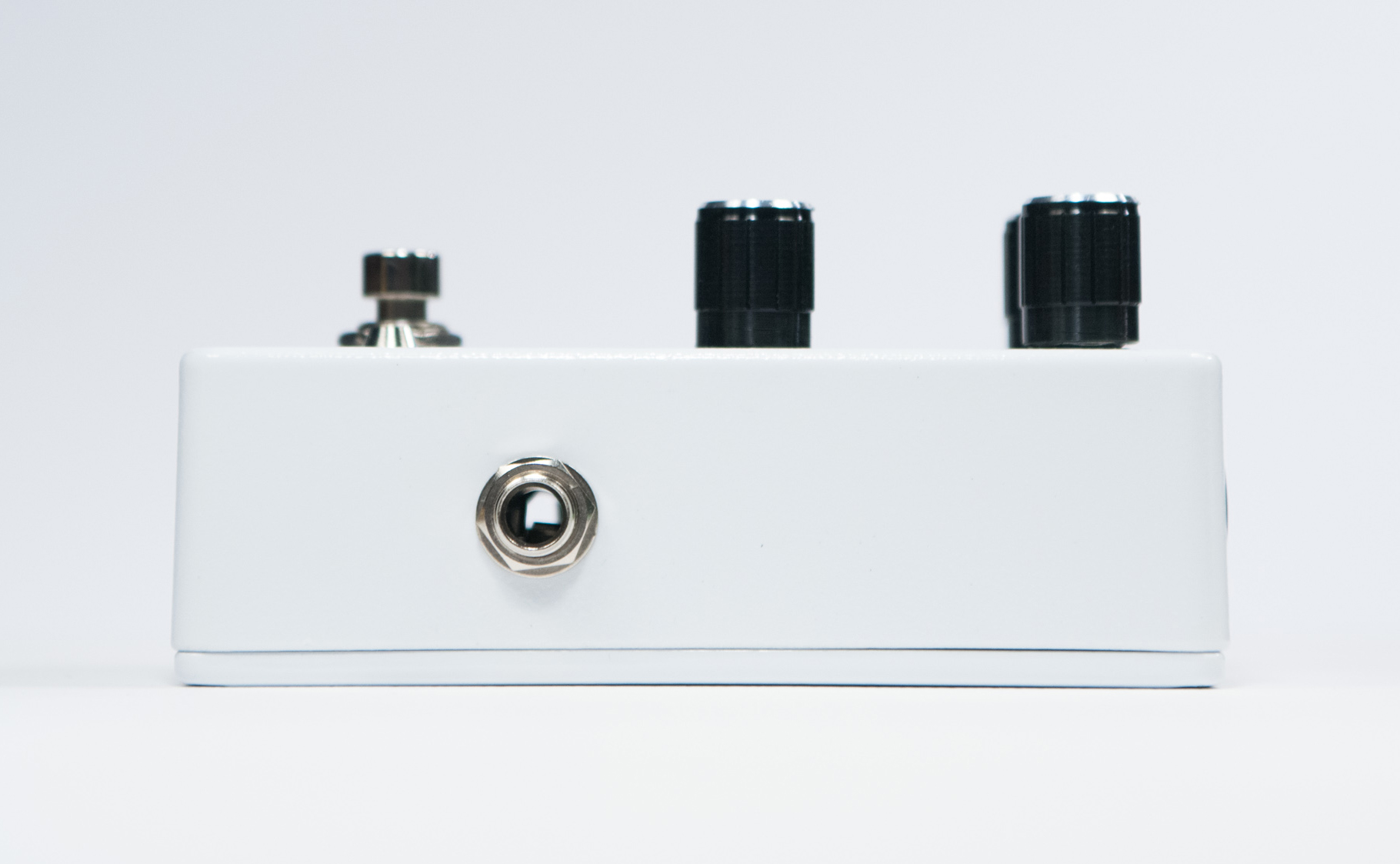

Photo Gallery

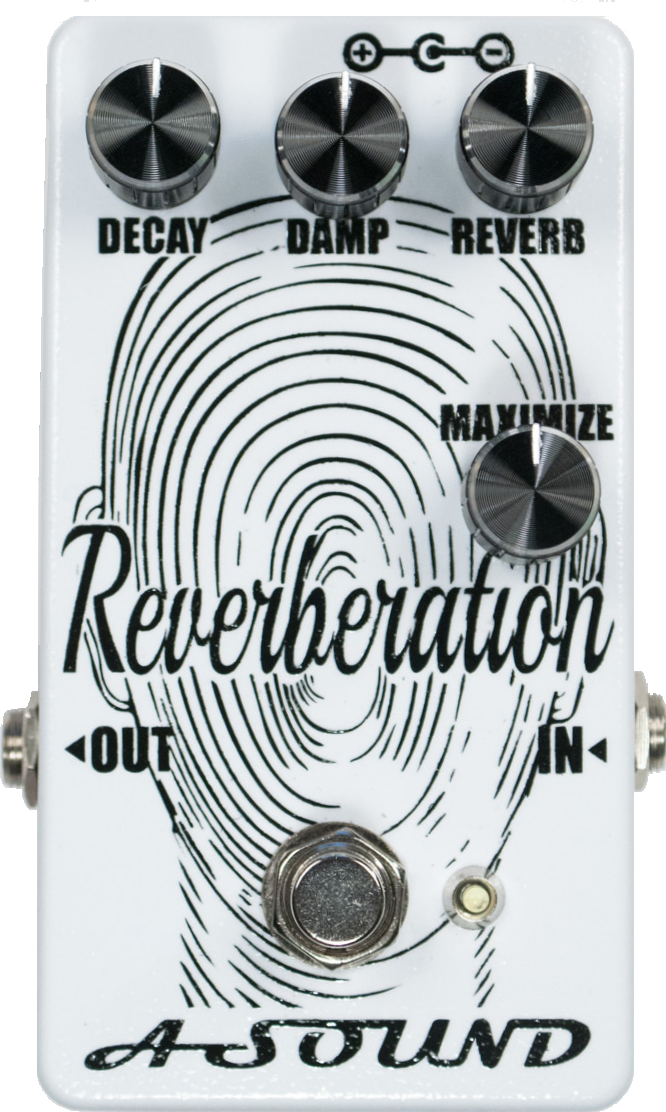

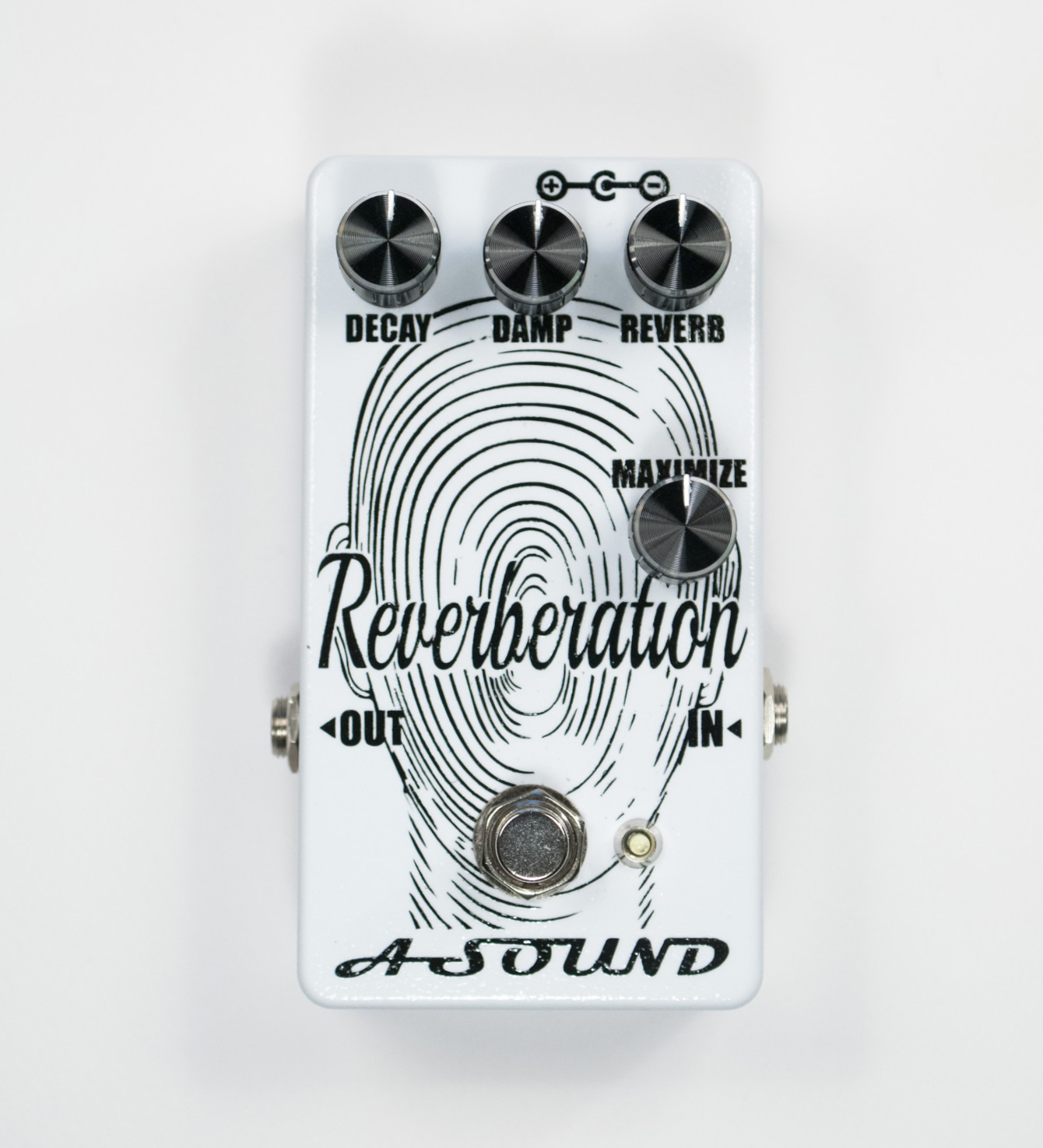

Controls
- 1. Decay - Controls the length of the reverb decay. Longer clockwise, shorter counterclockwise.
- 2. Damp - Controls the damping frequencies of the reverb. Clockwise for more harmonics and more "reflections" from the ambient environment, counterclockwise for less.
- 3. Reverb - Sets the mix of dry and wet signal. Clockwise for more, counterclockwise for less, full counterclockwise for no Reverb.
- 4. Maximize - Clockwise increase wet and dry signal together, counterclockwise decrease. Fully counterclockwise is less than the input signal level giving the range for any situation.
Tech Specs
Measures:
7.5 x 12 x 5.6 cm / 2.9 x 4.7 x 2.2 inches with knobs and everything
Current Draw:
48mA
Input Impedance:
500KOhm
Output Impedance:
<10KOhm
Switching
This device is true bypass. Audio will pass without power.

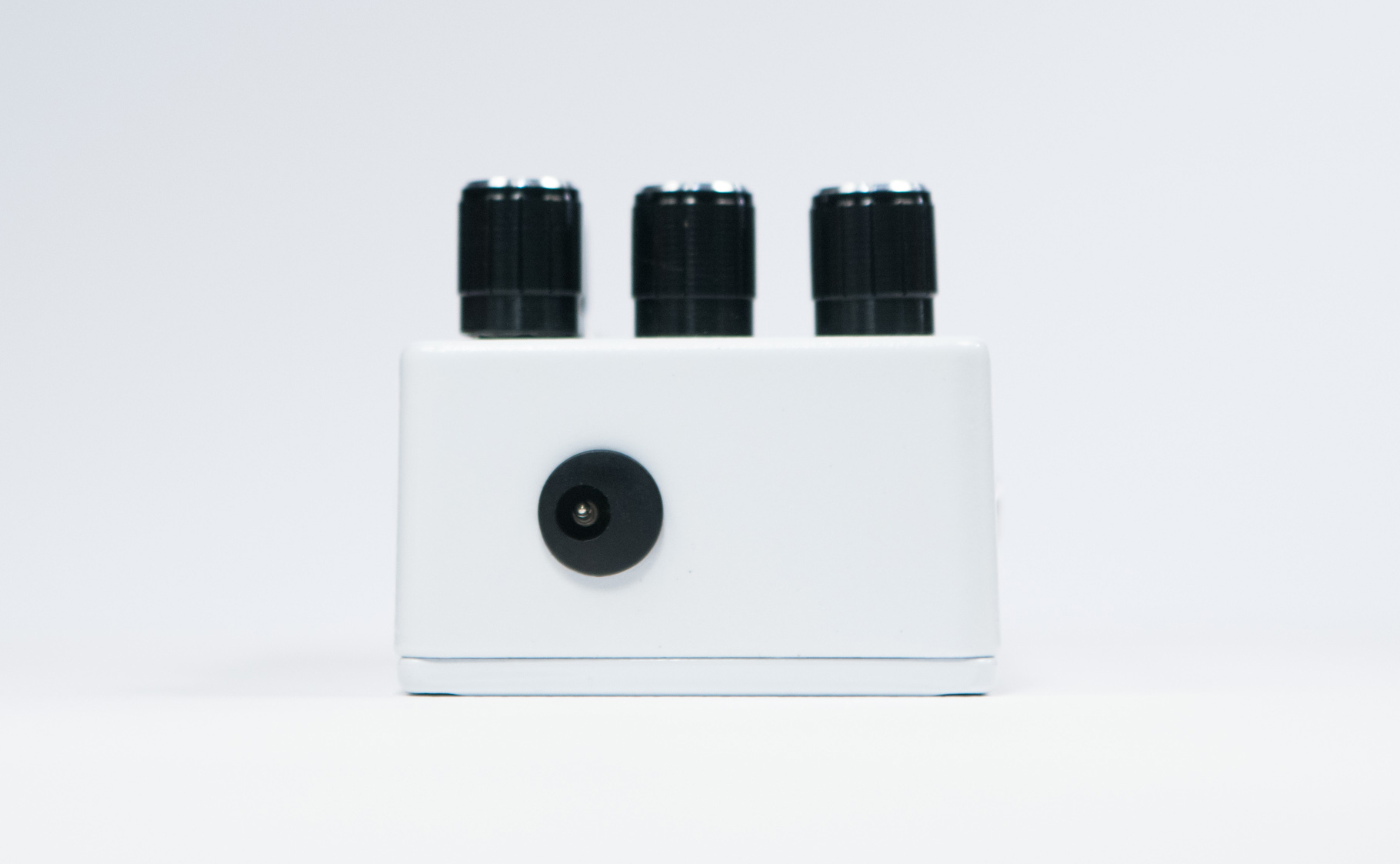

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
