Blue Dream
Tape Echo Machine
Blue Dream it’s a nice vintage tape echo machine for those with the nostalgia of the tape echo with all its peculiarities. Blue Dream it’s an analog voiced digital delay or a hybrid echo pedal, if you prefer. The wet signal is digital with 625ms delay time with an all-analog dry signal path and true bypass switching. Most delay pedals alters your tone or tend to be muddy, so special care taken designing transparent – crystal clear stages that doesn’t alter your tone. With the right combination of mix and feedback, you can make the dream came true! Αll you have to do is to set it up and relax in the ambient of the blue dream.
Demo Video & Audio Samples
In The Loop
Instead of using the traditional signal chain and connect all the pedals in the front of the amp, you can connect modulation and time effects using the amplifiers FX Loop.
An effects loop allows you to place pedals after the pre-amp stage.
In that way you don’t feed the pre-amp section of the amplifier with modulation and time effects.
Because there is no right or wrong, you can always connect your pedals the traditional way.
Maybe you like it better this way or this result suite better a particular amplifier.

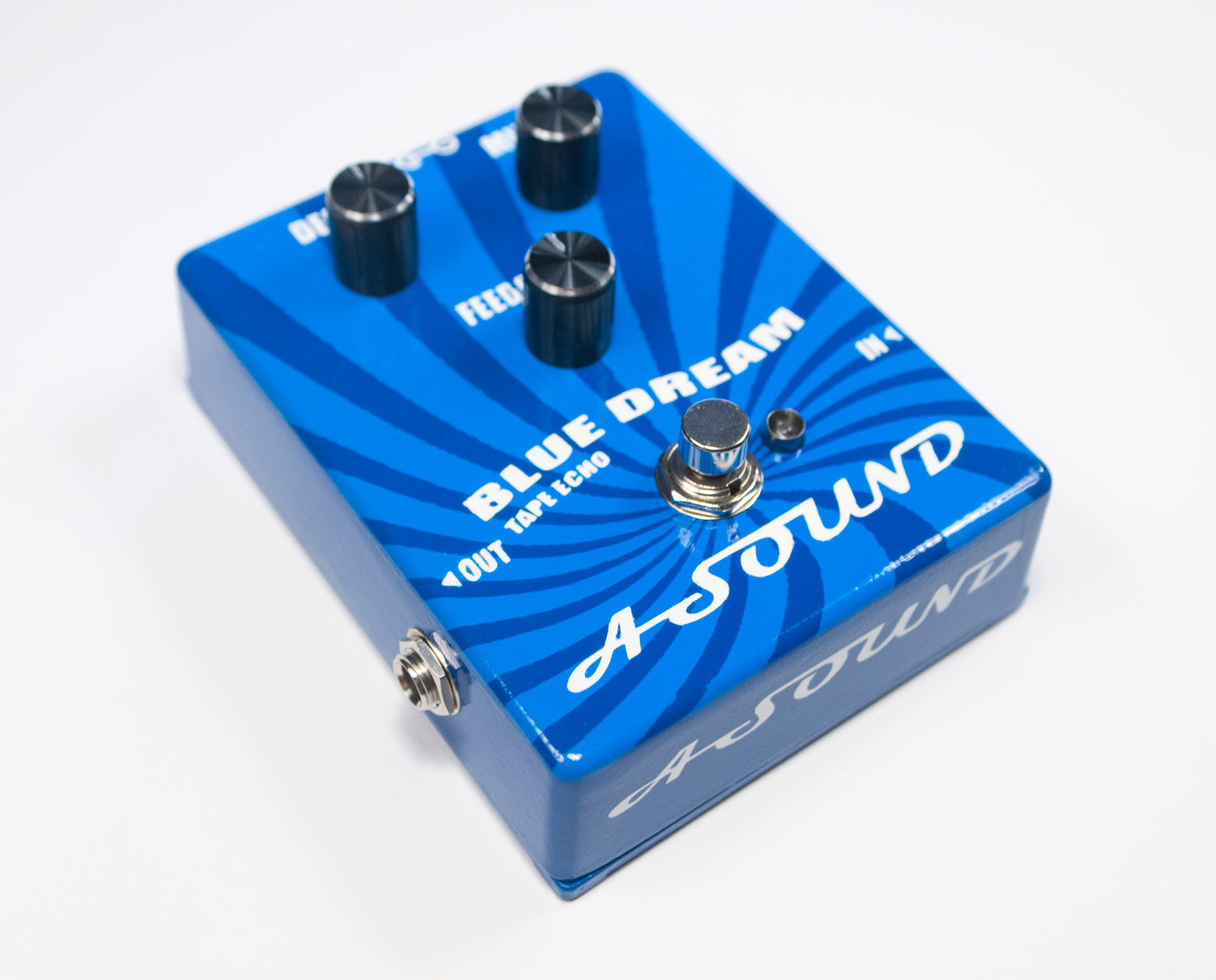

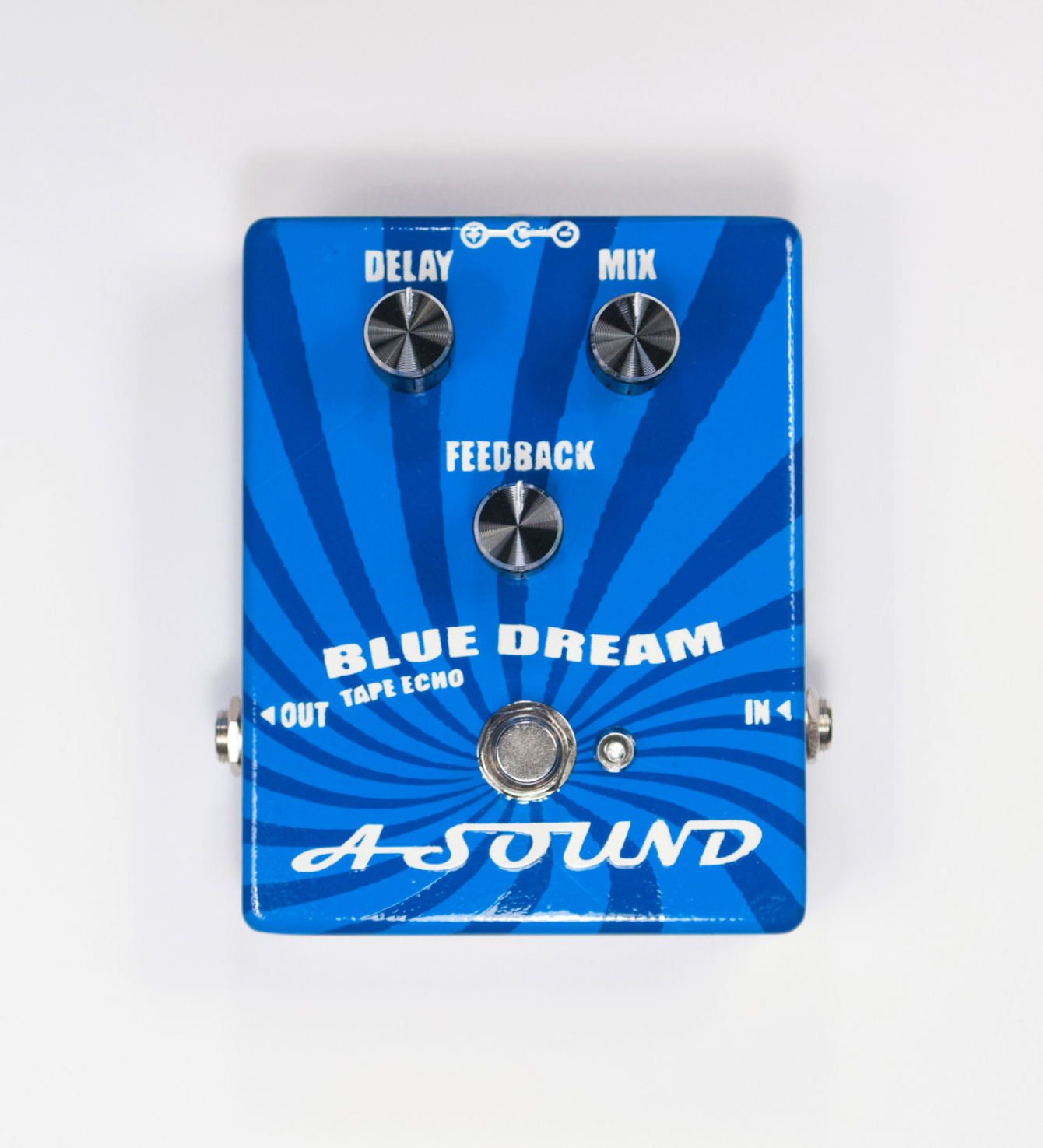

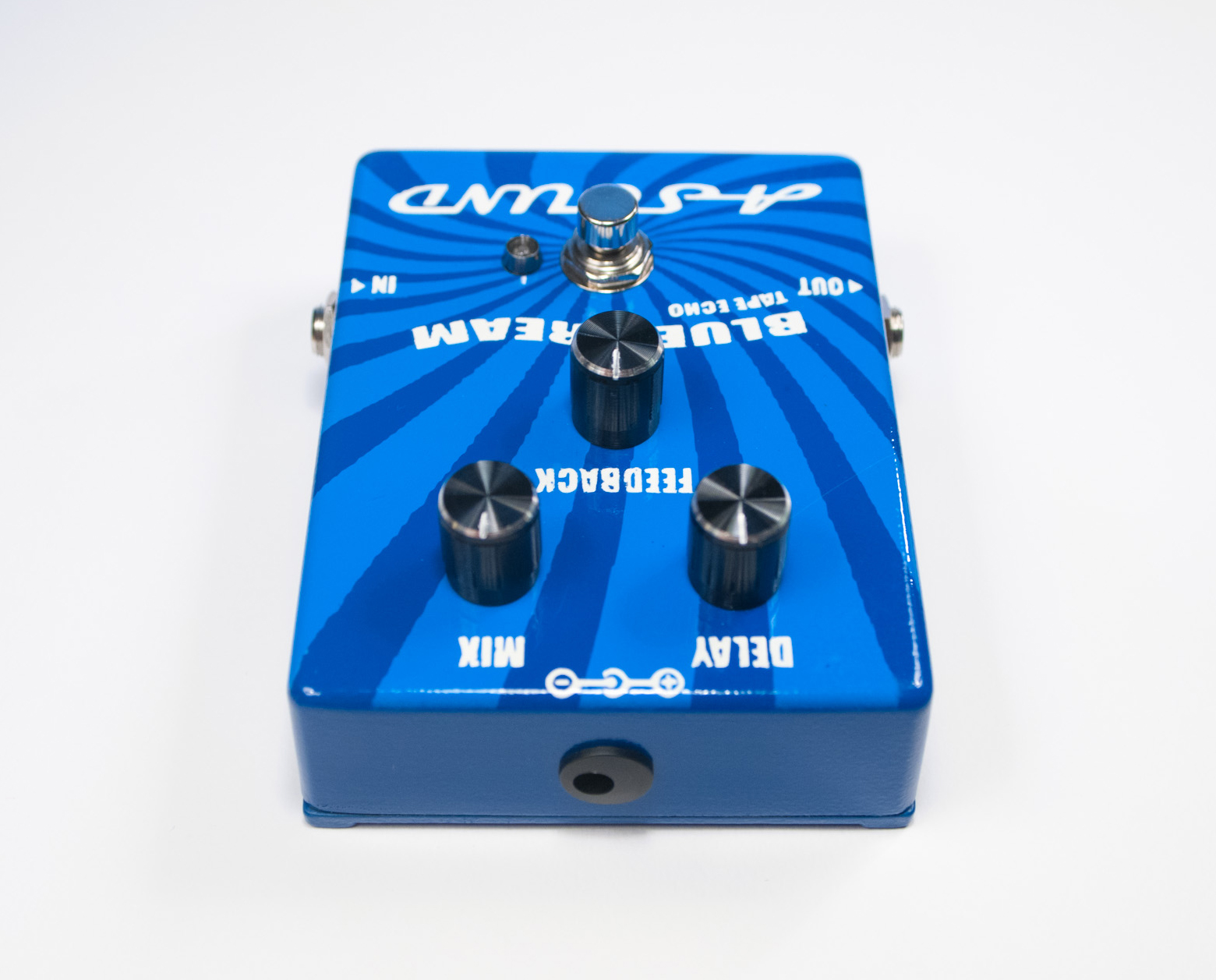

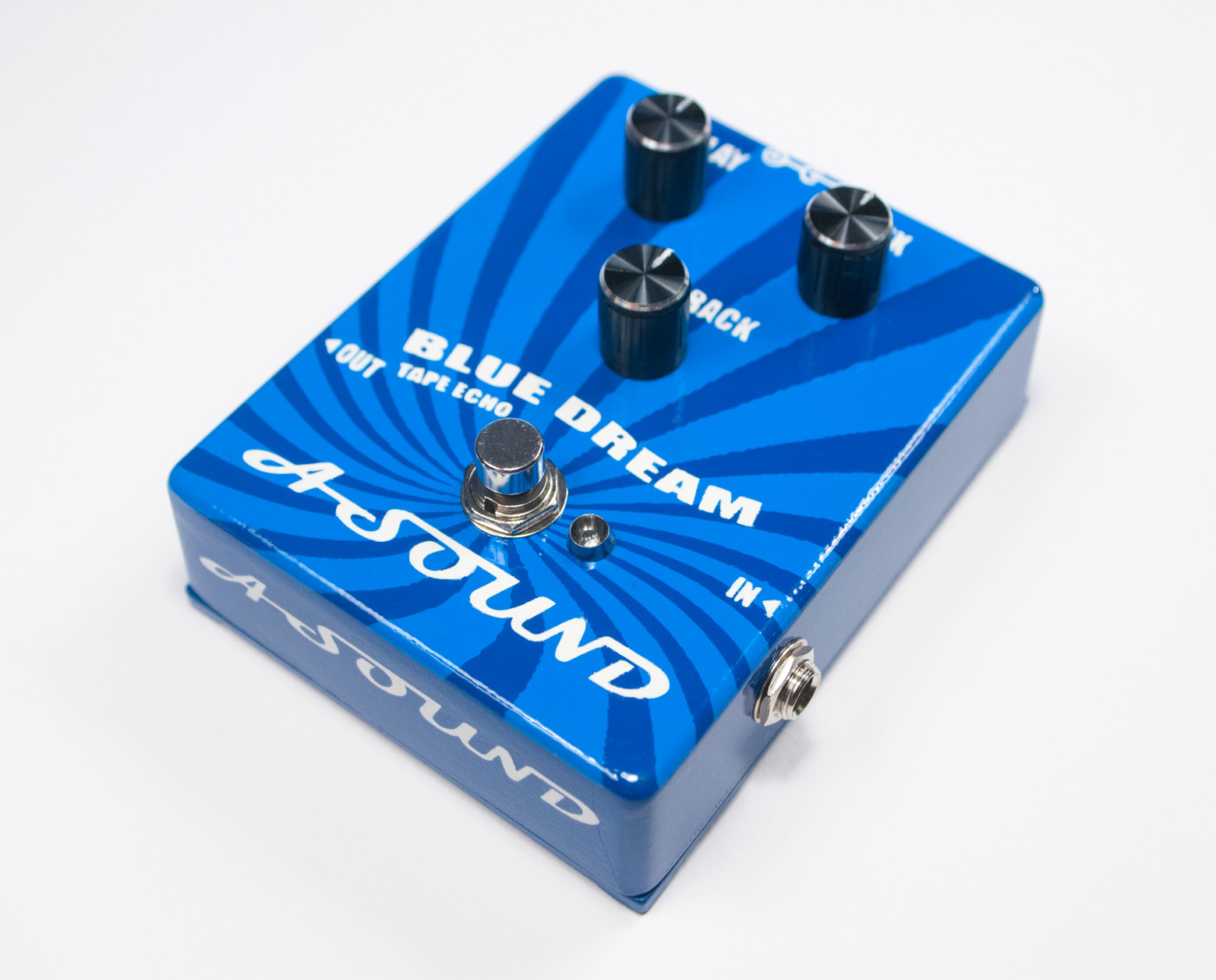

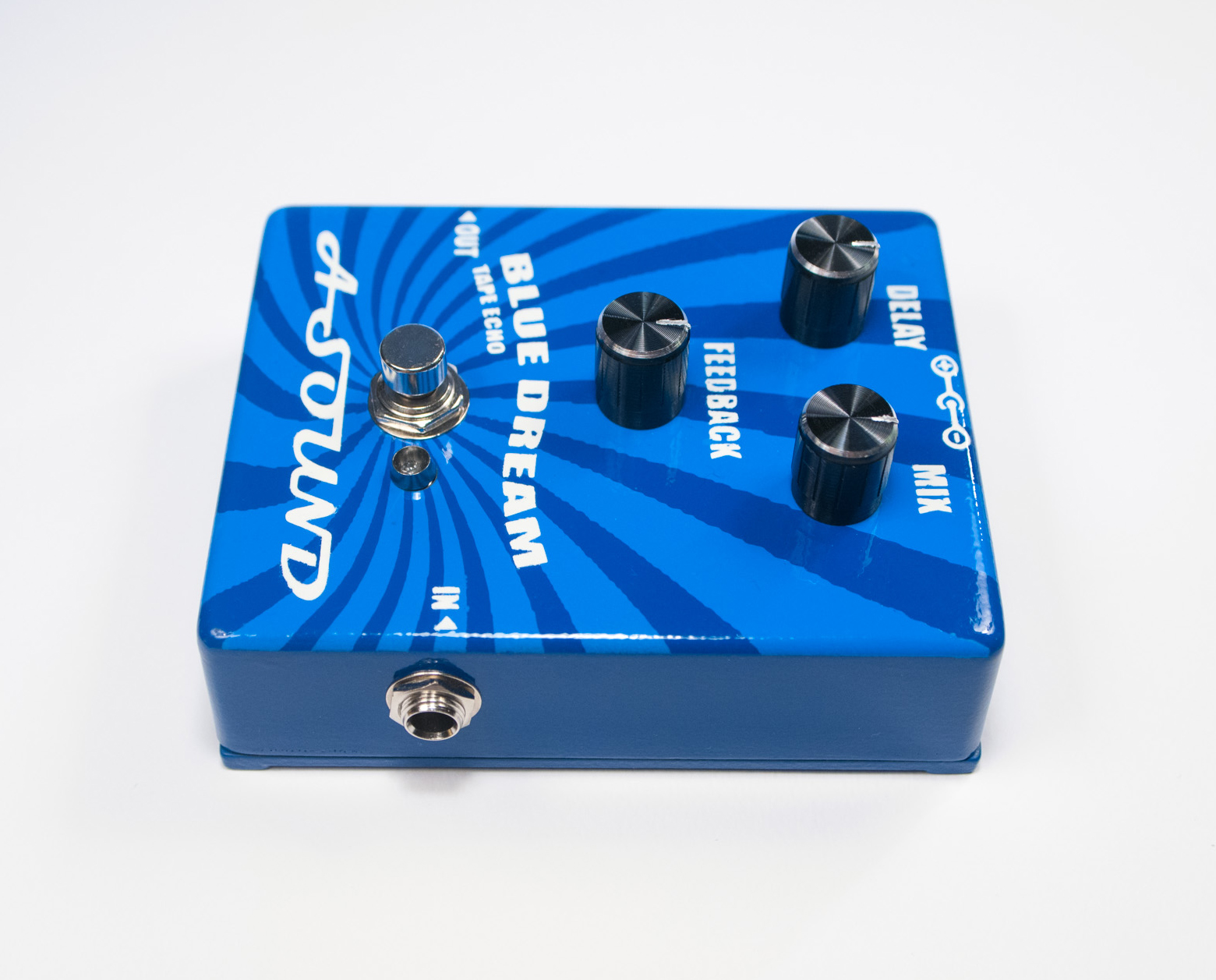

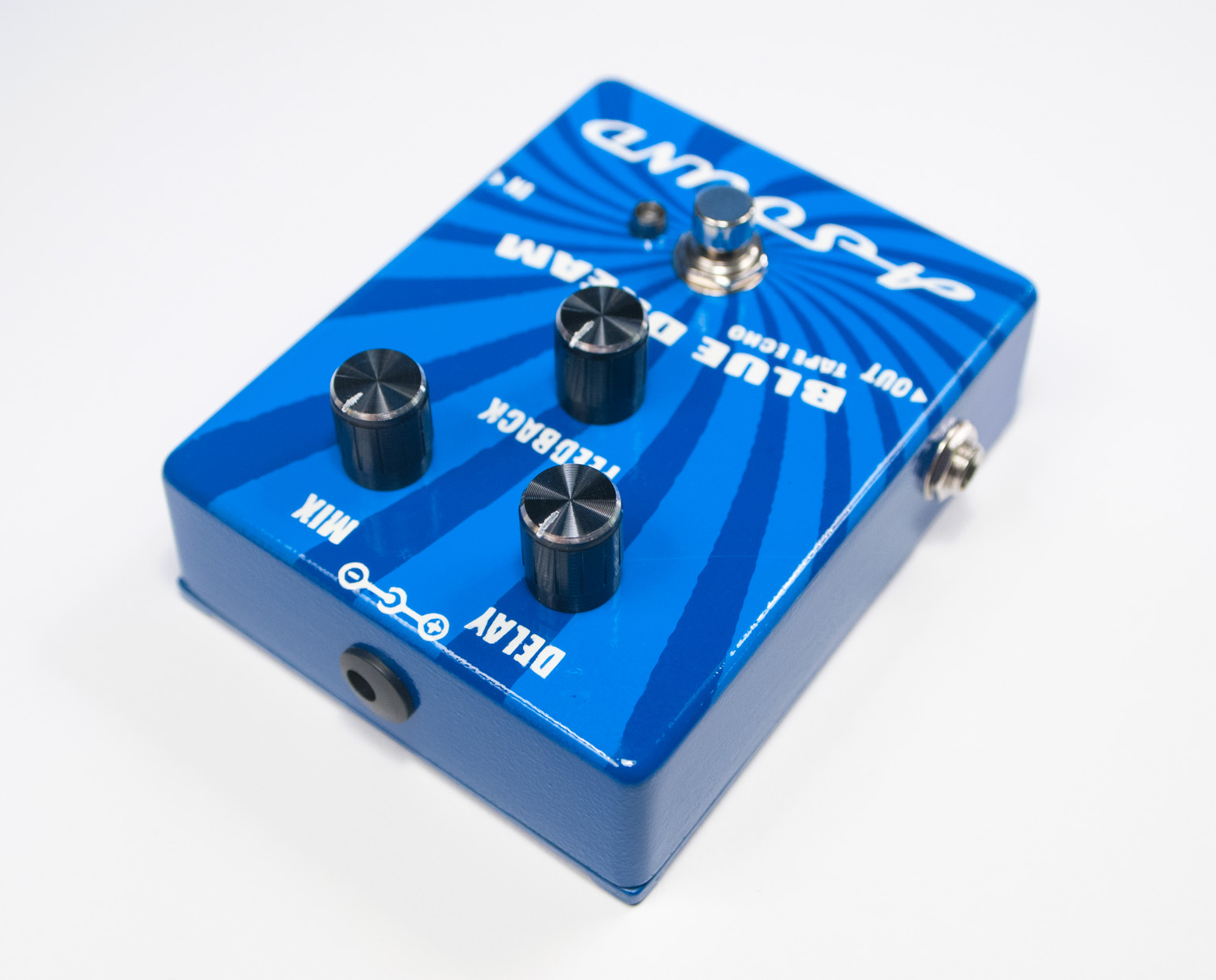

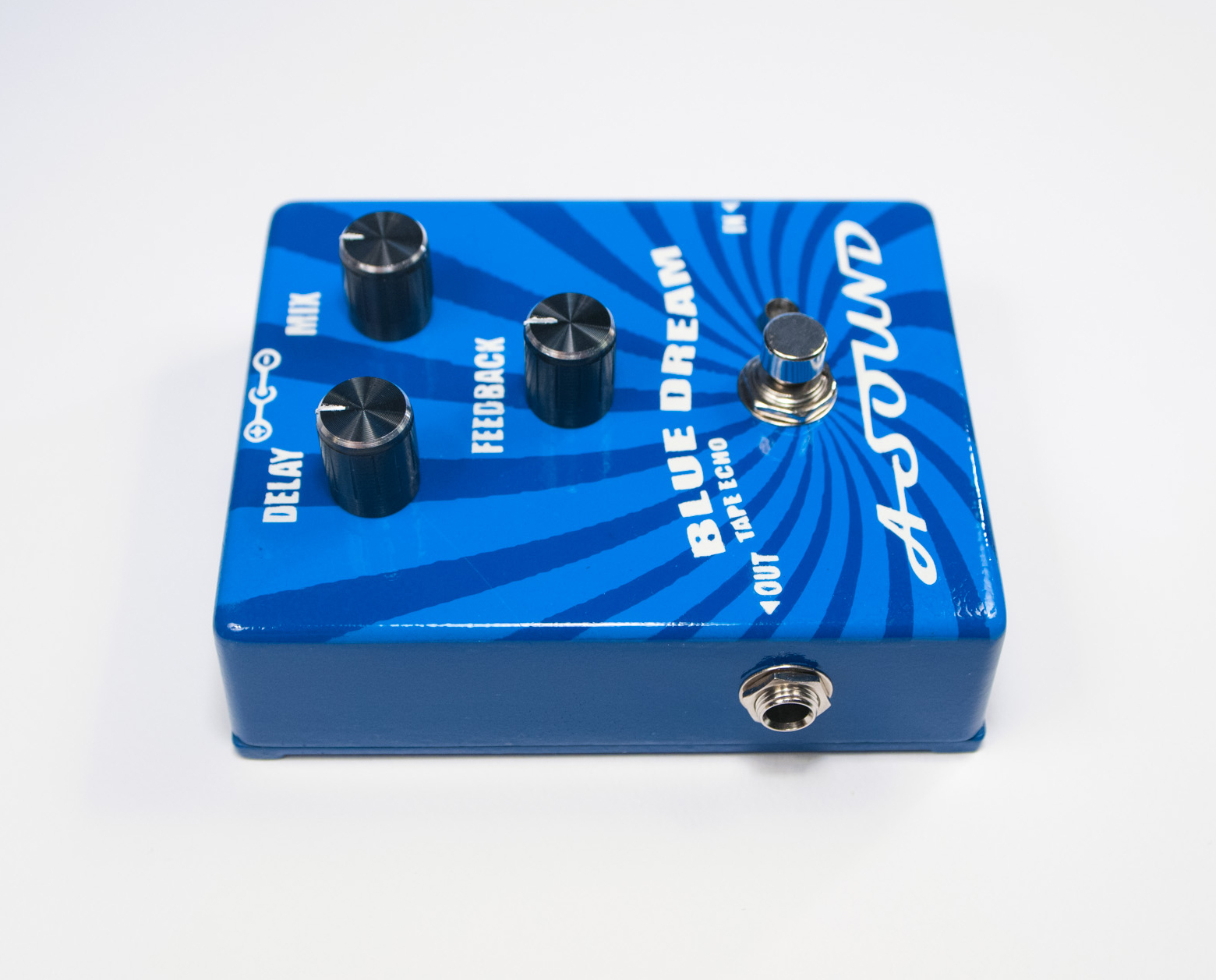

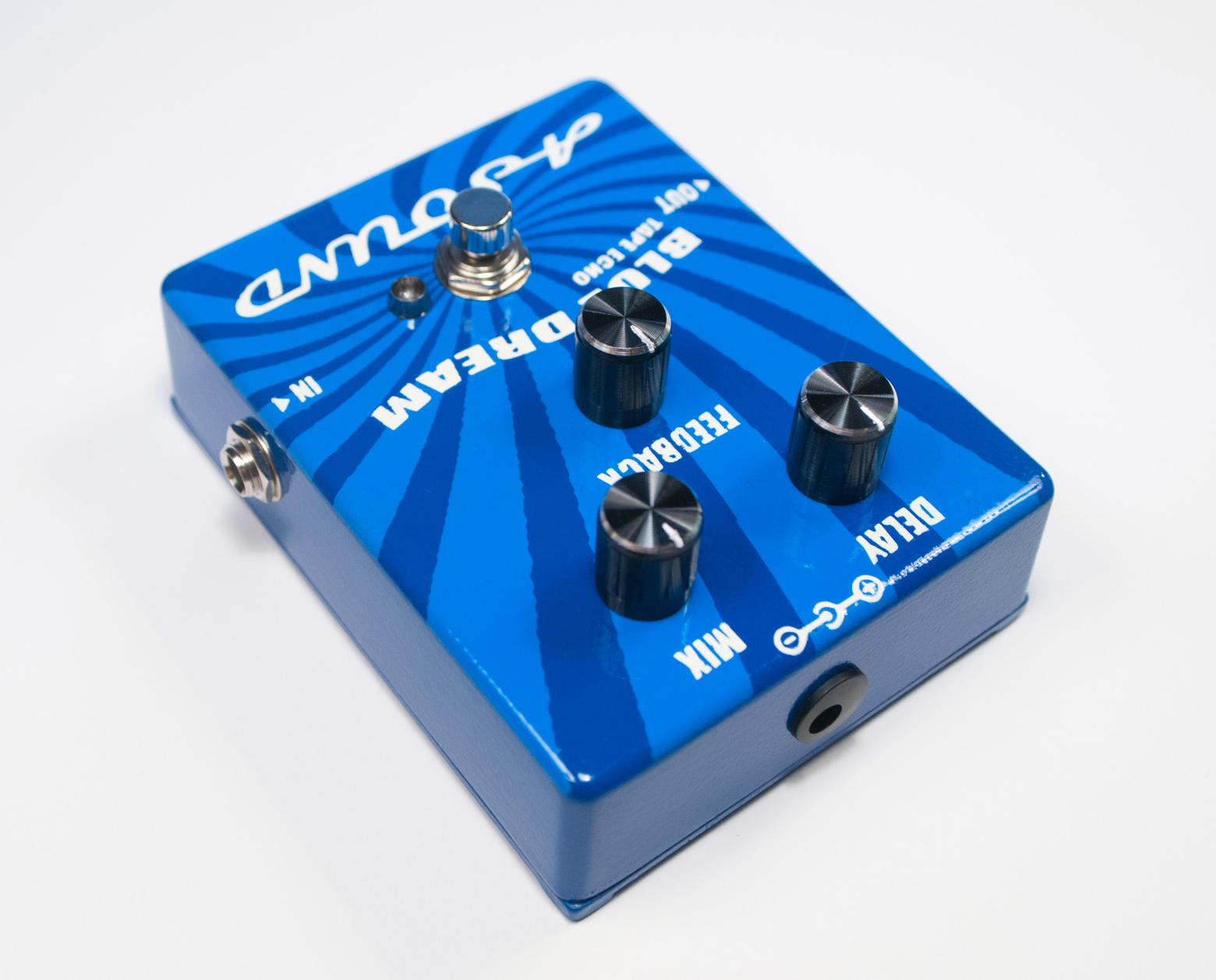

Photo Gallery

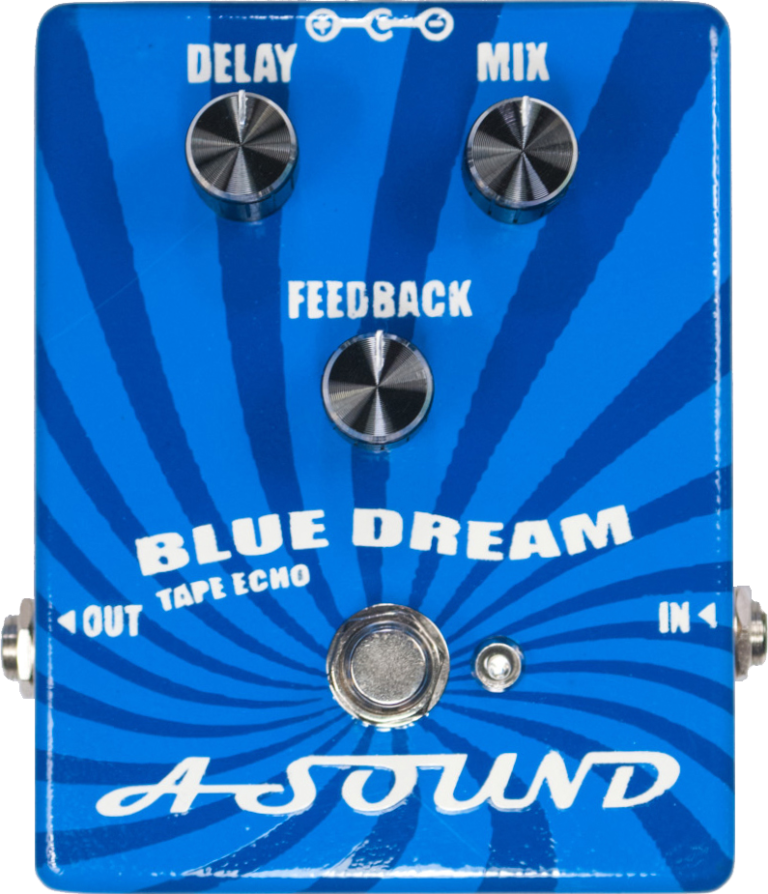

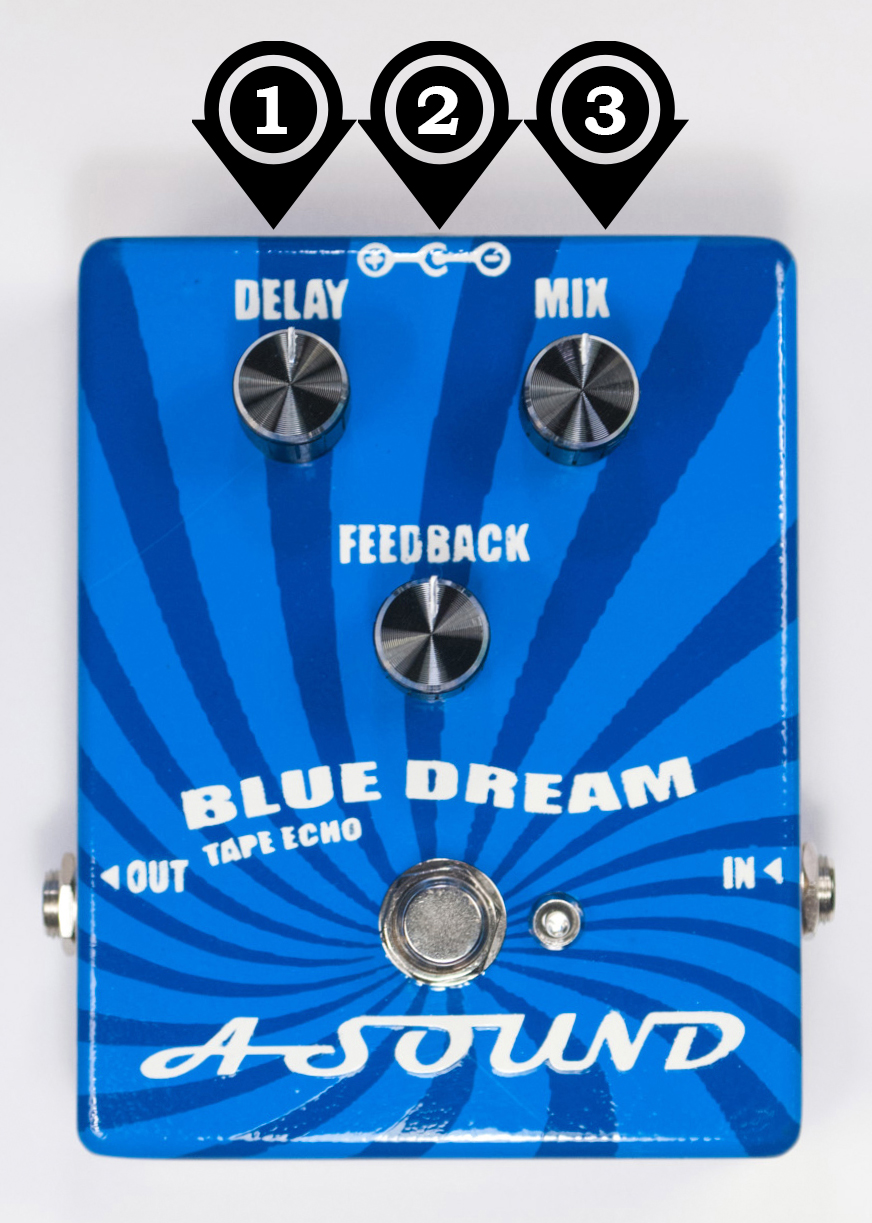

Controls
- 1. Delay - Controls the delay time from about 30ms up to 600ms.
- 2. Feedback - Controls how many regenerations of the signal there are. This ranges from one single repeat through an endless wash into self oscillation.
- 3. Mix - Level control for the wet signal. Unity is around center, anything above is boosted.
Tech Specs
Measures:
7.5 x 12 x 5.6 cm / 2.9 x 4.7 x 2.2 inches with knobs and everything
Current Draw:
48mA
Input Impedance:
500KOhm
Output Impedance:
<10KOhm
Switching
This device is true bypass. Audio will pass without power.
Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
